Standard Specification

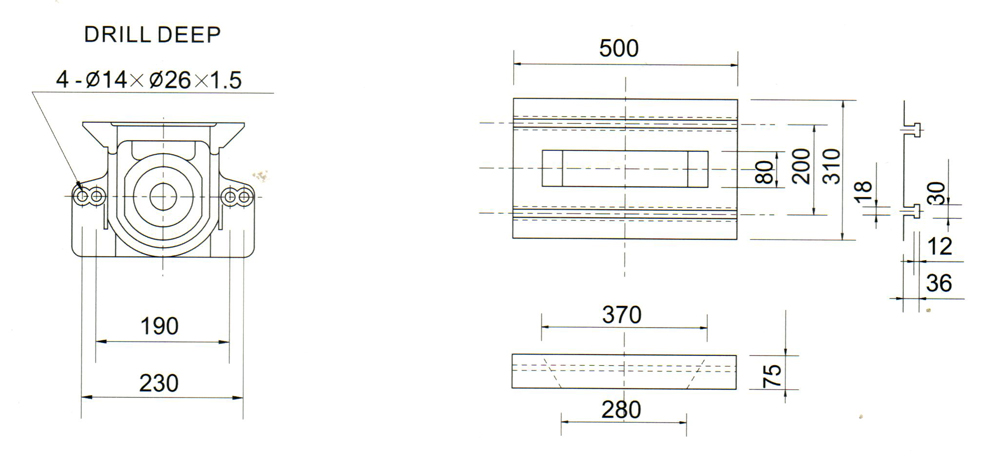

Standard Slide Area/Standard Bolster Area
Series Specifications HR-25
| ITEM | SPECIFICATION | ||||||
| Model / 型號 | HR-25 | ||||||
| Capacity /加壓能力 | TON | 25 | |||||
| Stroke of Side / 行程 | MM | 18 | 20 | 25 | 30 | 40 | 50 |
|
Stroke / 行程數 |
SPM | 150 | 150 | 150 | 150 | 150 | 150 |
| 800 | 750 | 680 | 600 | 470 | 380 | ||
| Die-height / 閉合工作高度(100) | MM | 210 | 209 | 206.5 | 204 | 199 | 194 |
| Capacity generating point / 衝壓發生位置 | MM | 1.6 | |||||
| Slide Adjustment / 衝頭調整量(50) | MM | 160~210 | |||||
| Slide lower area / 衝頭底面面積 | MM | 165×260 | |||||
| Slide hole / 衝頭孔徑深度 | MM | ø38×80 | |||||
| Bolster area and thickness / 工作台面積厚度 | MM | 75×310×500 | |||||
| Bolster opening / 機台下料孔徑 | MM | 80L×300W | |||||
| Foot stand from to bolster / 床腳至工作台高 | MM | 850 | |||||
| Foot stand size / 腳架尺寸 | MM | 800×1210 | |||||
| Postition of anchor bolts / 基礎螺栓位置 | MM | ø28×600×1150-4 | |||||

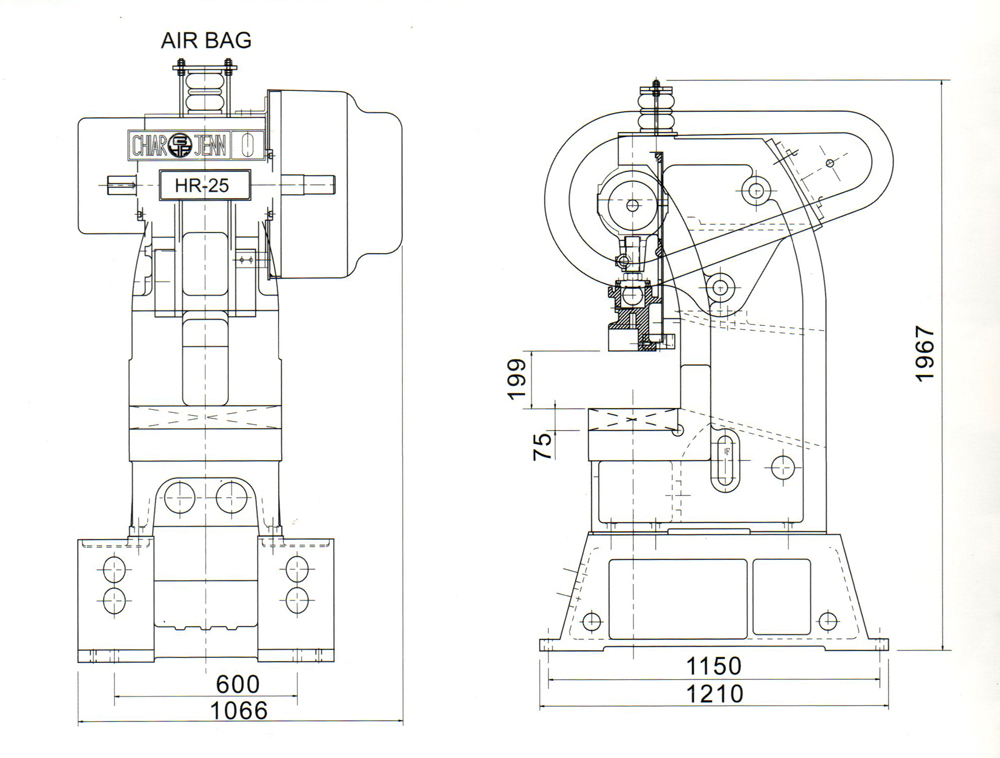

| Over all dimension / 長、寬、高 | MM | o 1210×1066×1967 | |||||
| Motor / 馬達 Pole / 極速 | 5HP×4P | ||||||
| Total Weight / 總重量 | KGS | 1800 | |||||
| Auto - Lubricating Unit / 自動潤滑裝置 | 強制循環給油附加恆溫冷卻系統 | ||||||
| Air Clutch / 離合器 | 本廠研發製造 | ||||||
| Air Pressure / 使用空氣壓力 | kg/cm | 5~7 | |||||
