Standard Specification

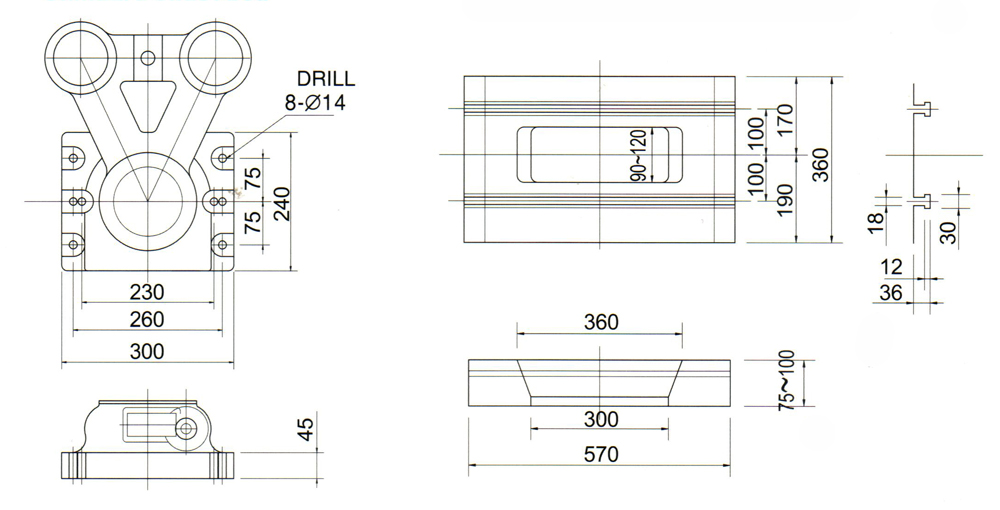

Standard Slide Area/Standard Bolster Area
Series Specifications DB-30
| ITEM | SPECIFICATION | |||||||
| Model / 型號 | DB-30 | |||||||
| Capacity /加壓能力 | TON | 30 | ||||||
| Stroke of Side / 行程 | MM | 15 | 18 | 20 | 25 | 30 | 40 | 50 |
|
Stroke / 行程數 |
SPM | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| 1100 | 1000 | 1000 | 900 | 800 | 600 | 500 | ||
| Die-height / 閉合工作高度(75) | MM | 237.5 | 236 | 235 | 232.5 | 230 | 225 | 220 |
| Slide Adjustment / 衝頭調整量40(75) | MM | 197.5 | 196 | 195 | 192.5 | 190 | 185 | 180 |
| Die-hight / 閉合工作高度(100) | MM | 212.5 | 211 | 210 | 207.5 | 205 | 200 | 195 |
| Slide Adjustment / 衝頭調整量40(100) | MM | 172.5 | 171 | 170 | 167.5 | 165 | 160 | 155 |
| Slide lower area / 衝頭底面面積 | MM | 300×240×45 | ||||||
| Slide hole / 沖頭鎖緊上模位置 | MM | 230mm 260mm ø14 | ||||||
| Bolster area and thickness / 工作台面積厚(70~100) | MM | (75~100)×500×325 or 570×360 or 670×360 | ||||||
| Bolster opening / 工作台下料孔徑 | MM | 300×120 | ||||||
| Foot stand from to bolster / 床腳至工作台高 | MM | (820~845) | ||||||
| Foot stand size / 腳架尺寸 | MM | 1250×970 | ||||||
| Postition of anchor bolts / 基礎螺栓位置 | MM | 4-ø 30 - 1180×640 | ||||||

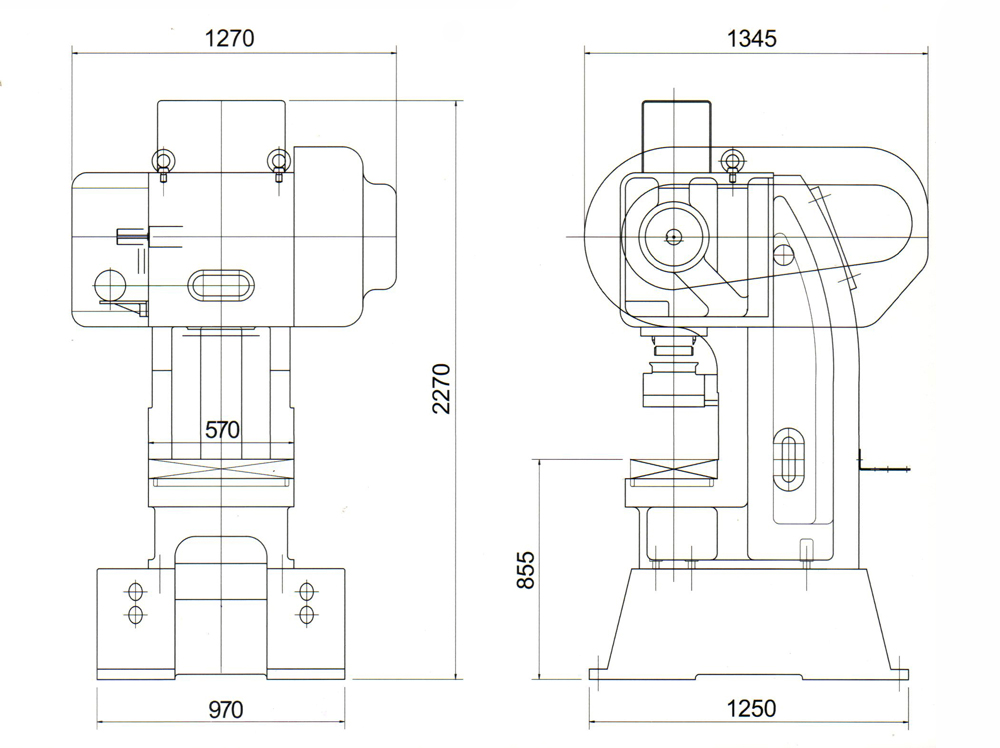

| Over all dimension / 長、寬、高 | MM | (1270) 970×1250×2270 | ||||||
| Motor / 馬達 Pole / 極速 | 7.5HP×4P | |||||||
| Total Weight / 總重量 | KGS | 3000 | ||||||
| Auto - Lubricating Unit / 自動潤滑裝置 | 強制循環給油附加恆溫冷卻系統 | |||||||
| Air Clutch / 離合器 | 本廠研發製造 | |||||||
| Air Pressure / 使用空氣壓力 | kg/cm | 2~7 | ||||||
